Experiments

Building upon the concepts and techniques discussed throughout this work, this chapter showcases several images produced during the development of the research.

Rendering Results

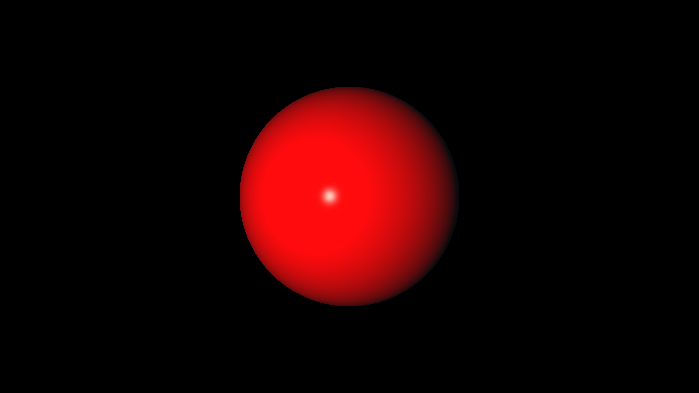

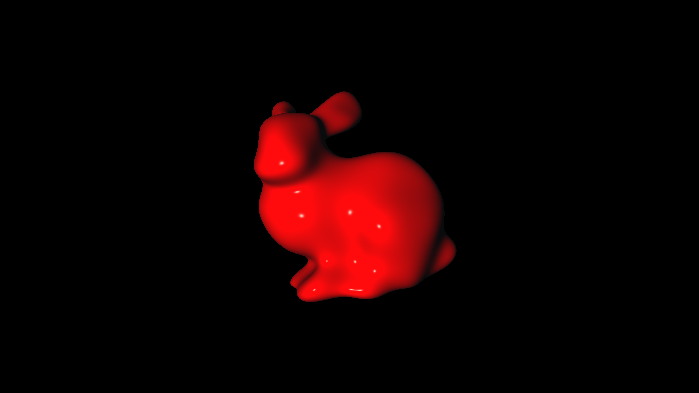

Ray Marching is particularly expressive when it comes to rendering shapes. Since the geometry is described as a distance field, it allows enormous flexibility when modeling 3D shapes with mathematical expressions. Figure 27 illustrates a smooth interpolation between the distance field of a sphere and that of the Stanford Bunny, a widely used 3D test model from the Stanford 3D Scanning Repository [Turk & Levoy, 1994].

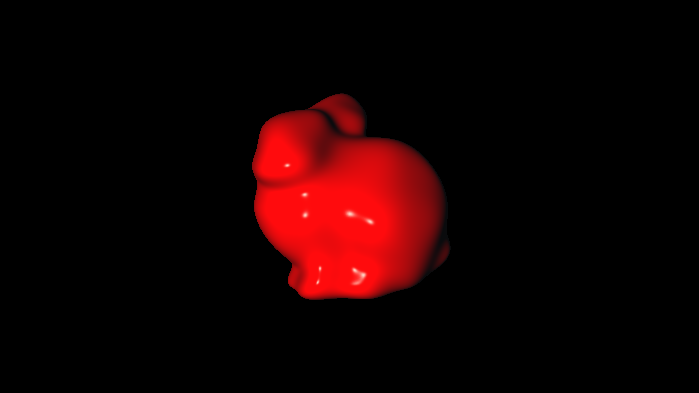

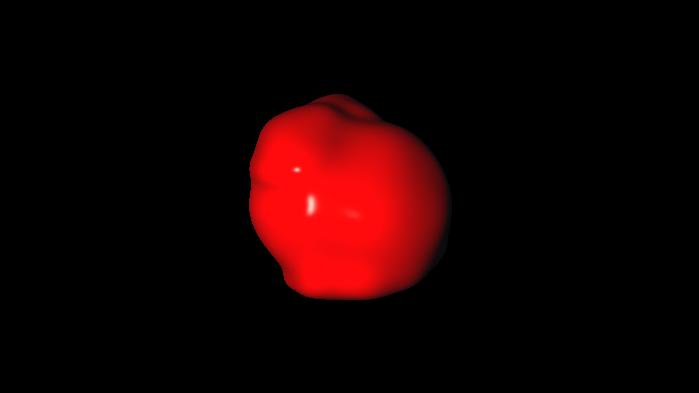

Figure 27 — Smooth Interpolation between a Sphere and Stanford Bunny.

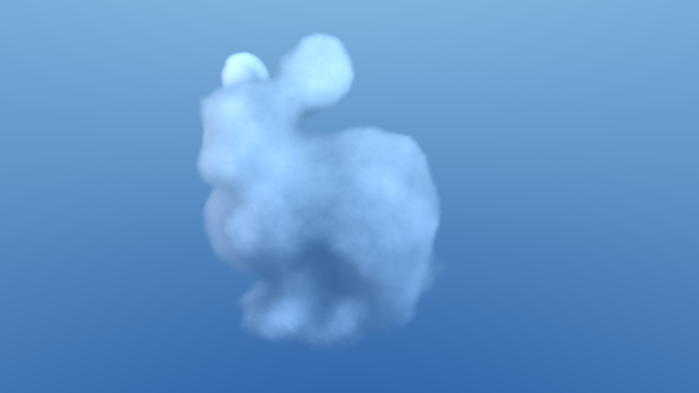

In the context of volumetric rendering, different signed distance functions can be employed to define the spatial bounds and volumetric density of a shape. This enables the exploration of a wide range of volumetric structures, including tubular clouds and a Stanford Bunny-shaped cloud, as illustrated in Figure 28.

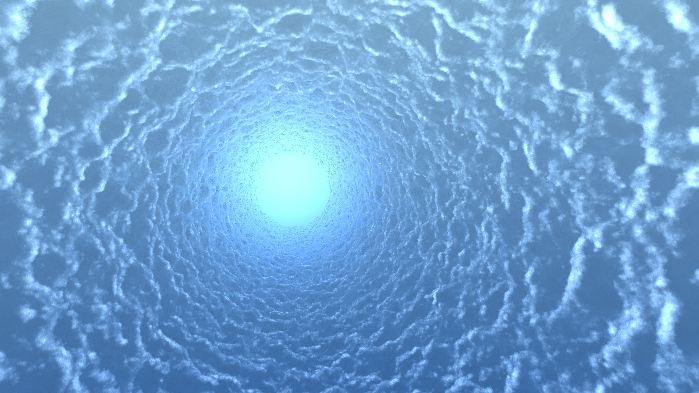

Figure 28 — Stanford Bunny-shaped cloud and tubular clouds.

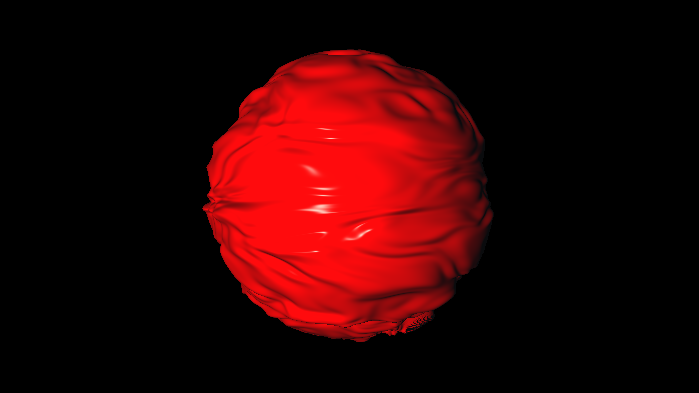

Natural structures typically exhibit a balance between regularity and irregularity rather than perfect smoothness or complete randomness. Noise techniques are extremely powerful for simulating organic shapes through controlled variation — including deformed spheres, mountainous landscapes, and terrain, illustrated in Figure 29.

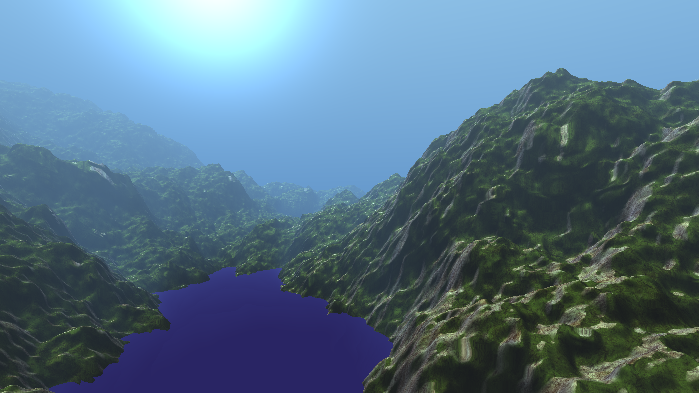

Figure 29 — Scenes generated with Domain Warping and FBM Noise.

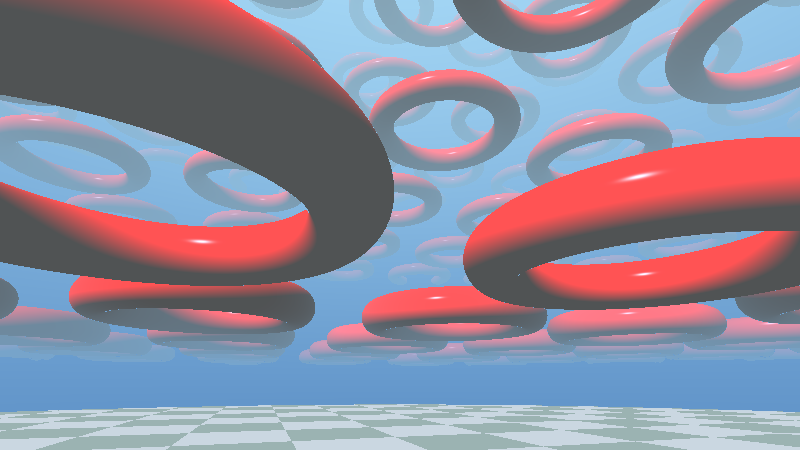

Domain repetition can be used to efficiently construct scenes composed of many similar elements. In Figure 30, a single torus SDF is periodically repeated across space to populate the scene with multiple instances.

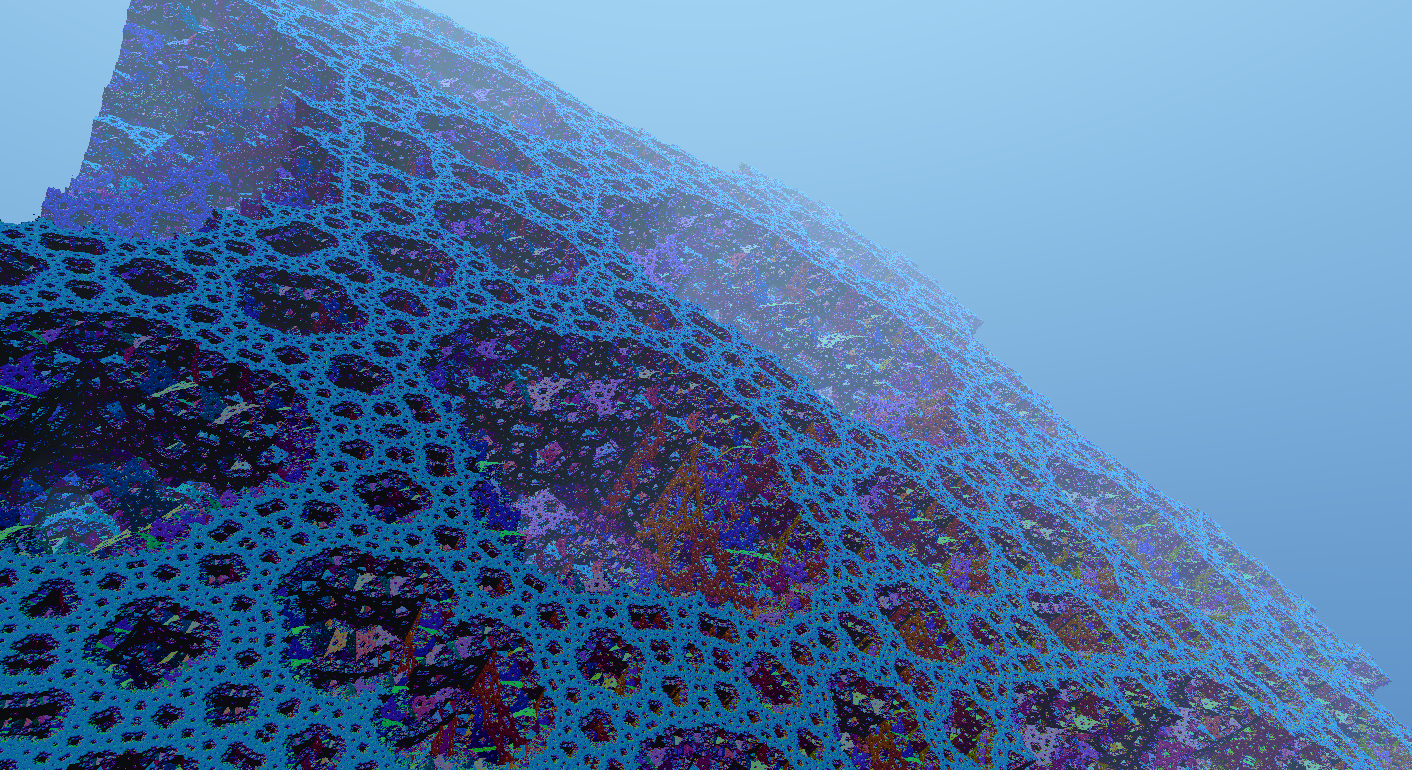

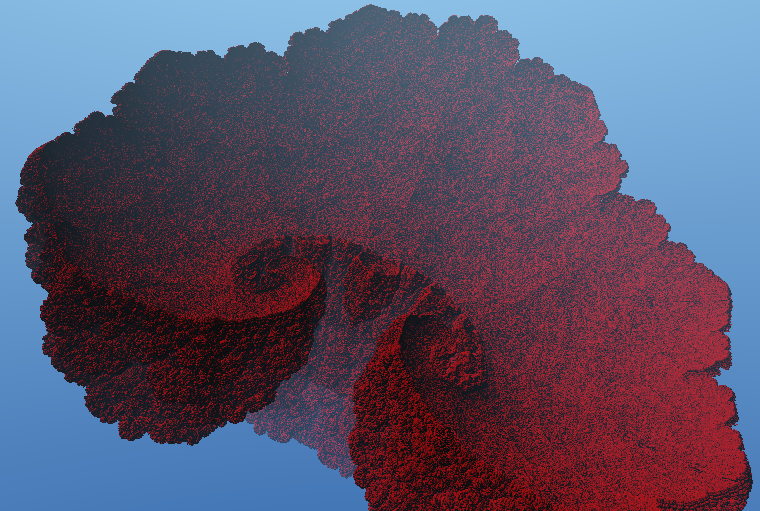

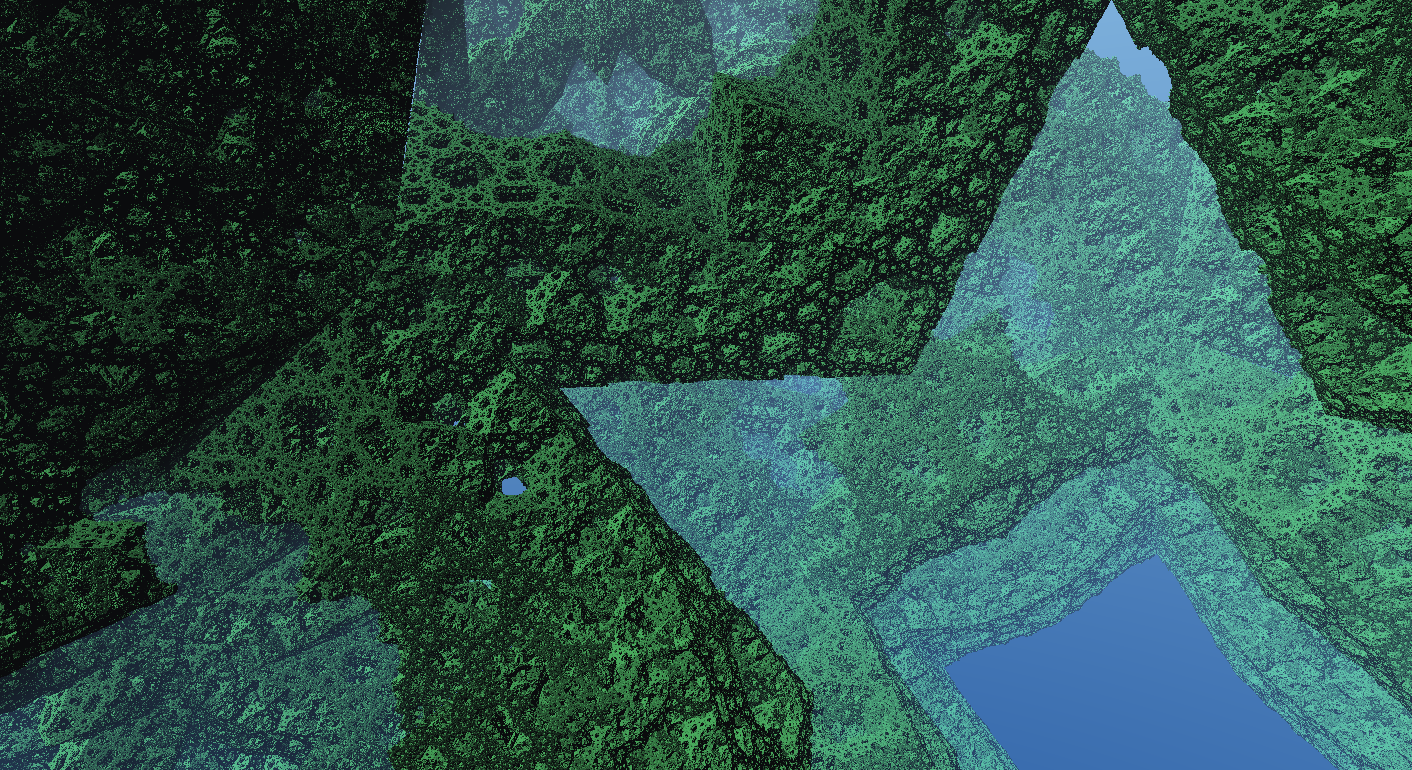

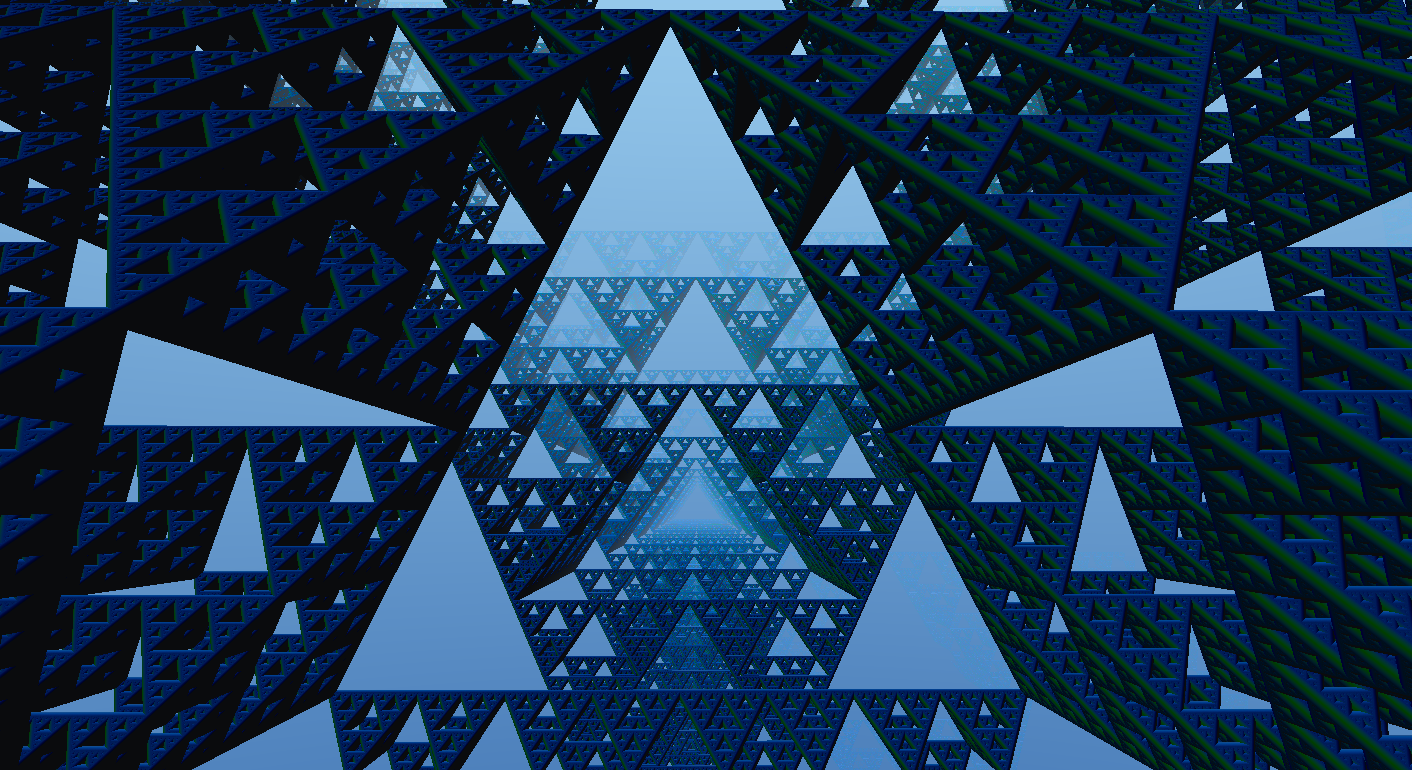

As mentioned in earlier chapters, Ray Marching is widely used for the rendering of fractals — from simpler forms (Sierpiński Triangle) to more generalized ones such as Kaleidoscopic IFSs (Iterated Function Systems), as displayed in Figure 31.

The technique used to render the Sierpiński Triangle is a variation of domain repetition applied to tetrahedrons — the additional cost for calculating infinite distances is reduced to just one repeating object. This generalizes to all platonic objects. With clever space folding and rotations, a 2010 user of Fractal Forums [Godar, 2010] came up with what they called Kaleidoscopic IFS, now a mainstay in the fractal rendering community.

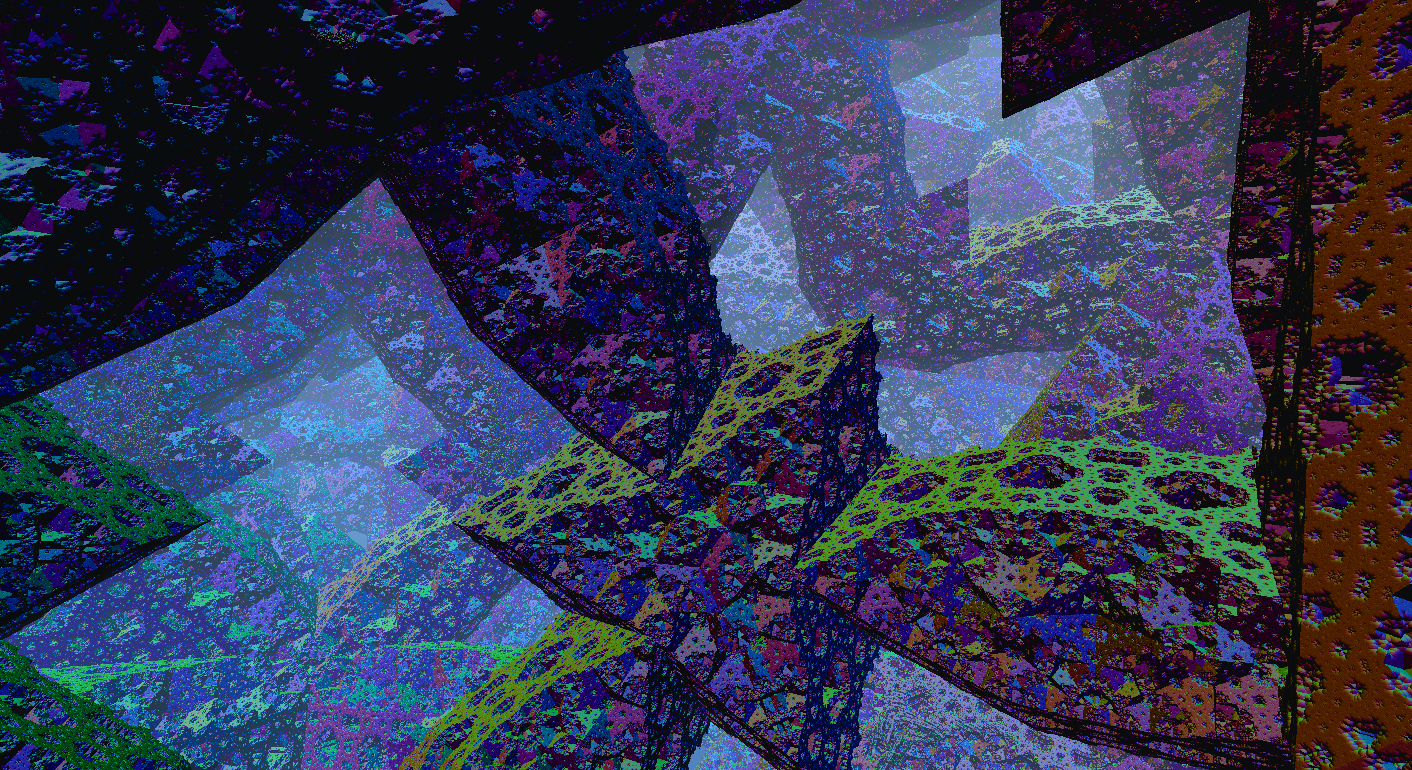

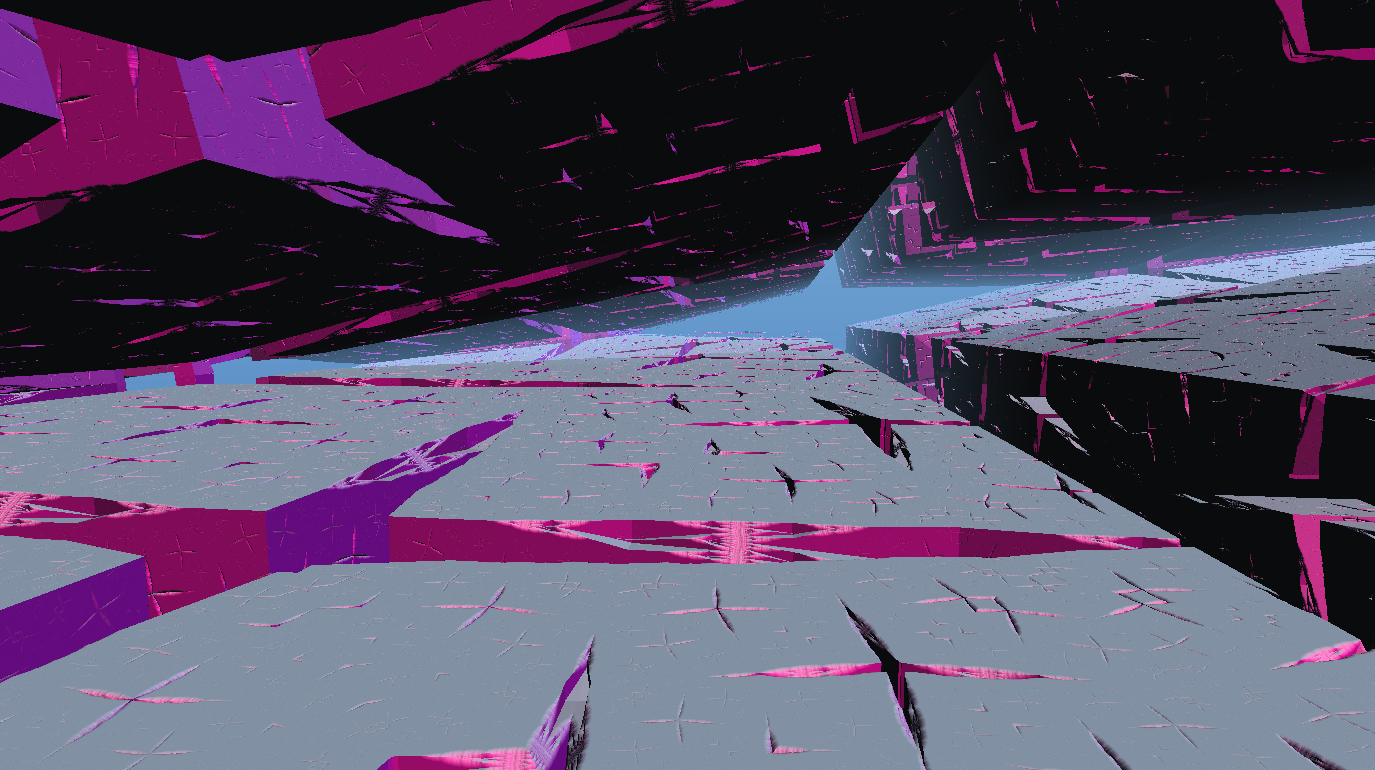

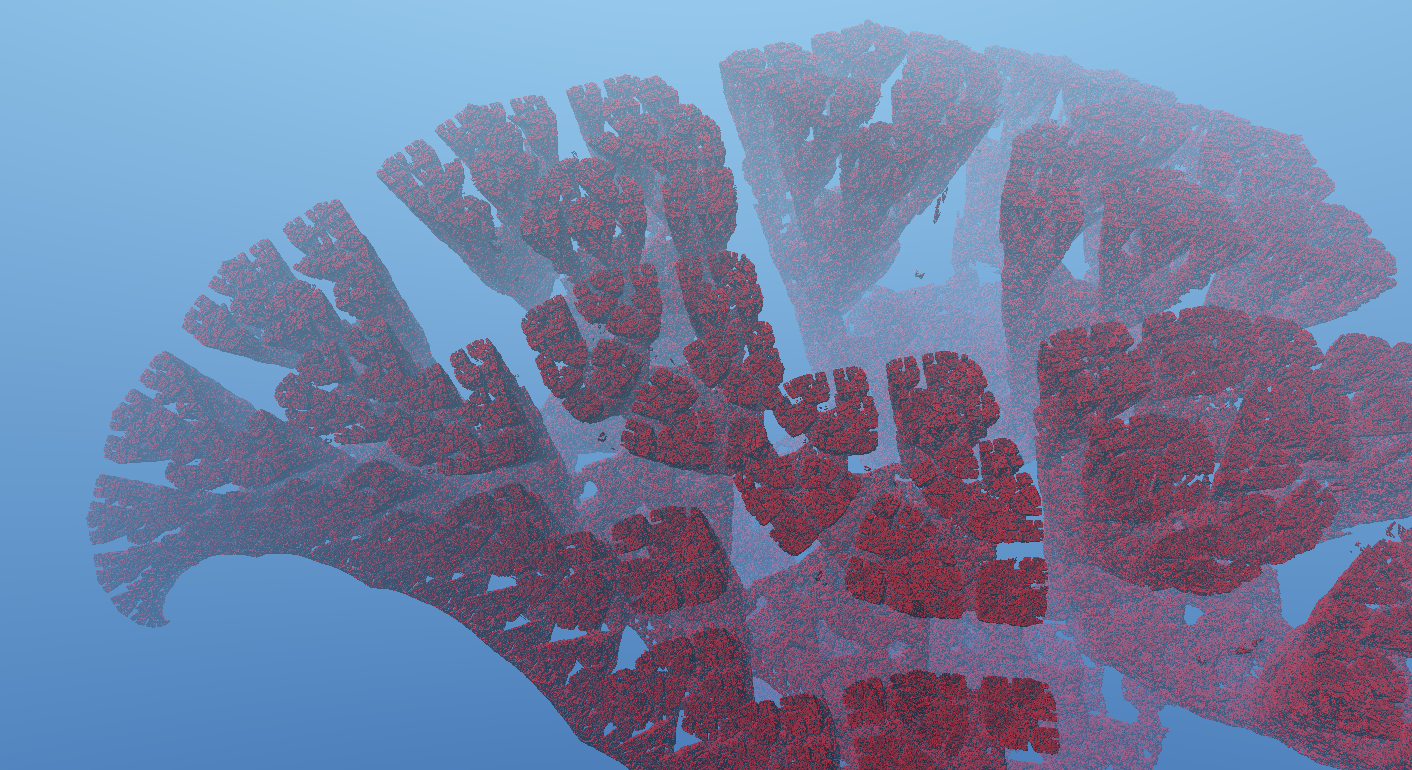

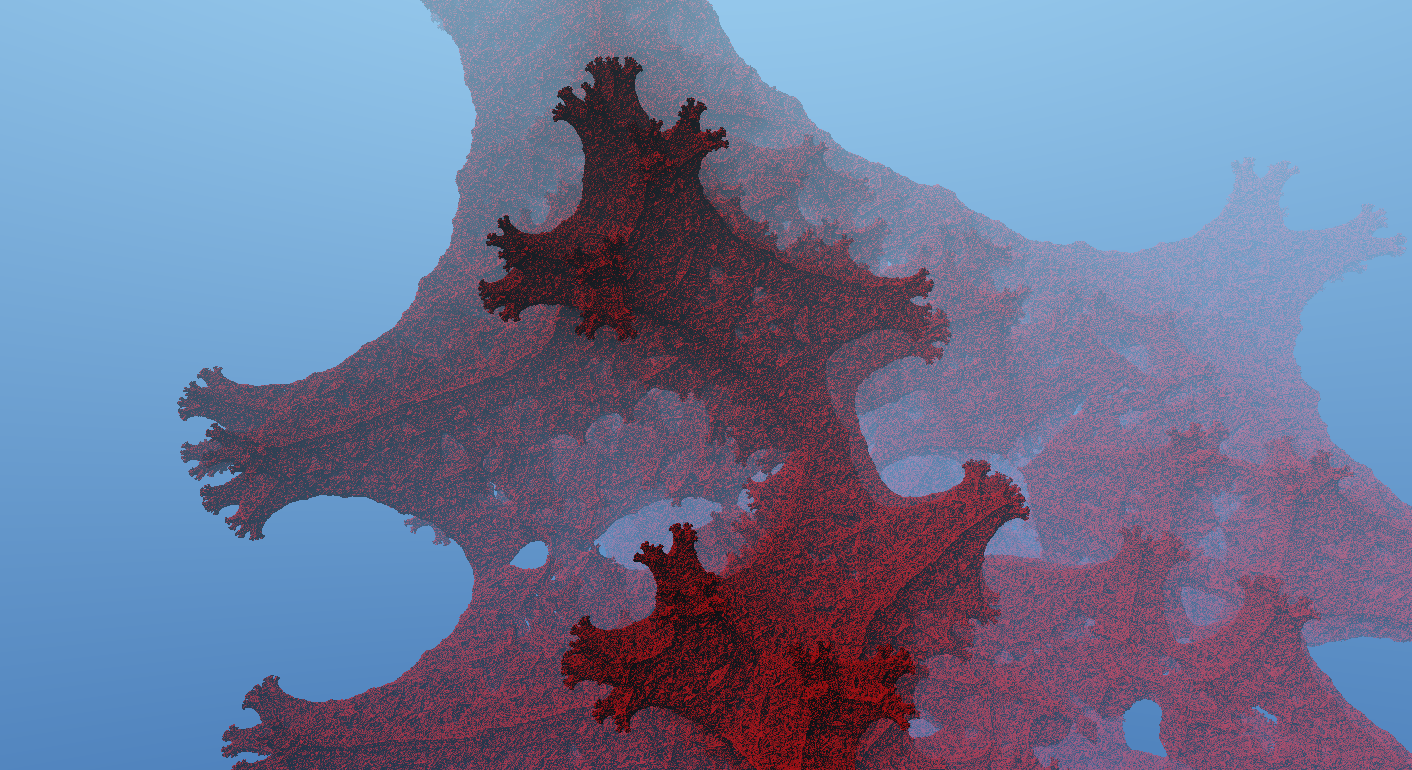

Figure 31 — Multiple fractals using the Kaleidoscopic IFS technique.
